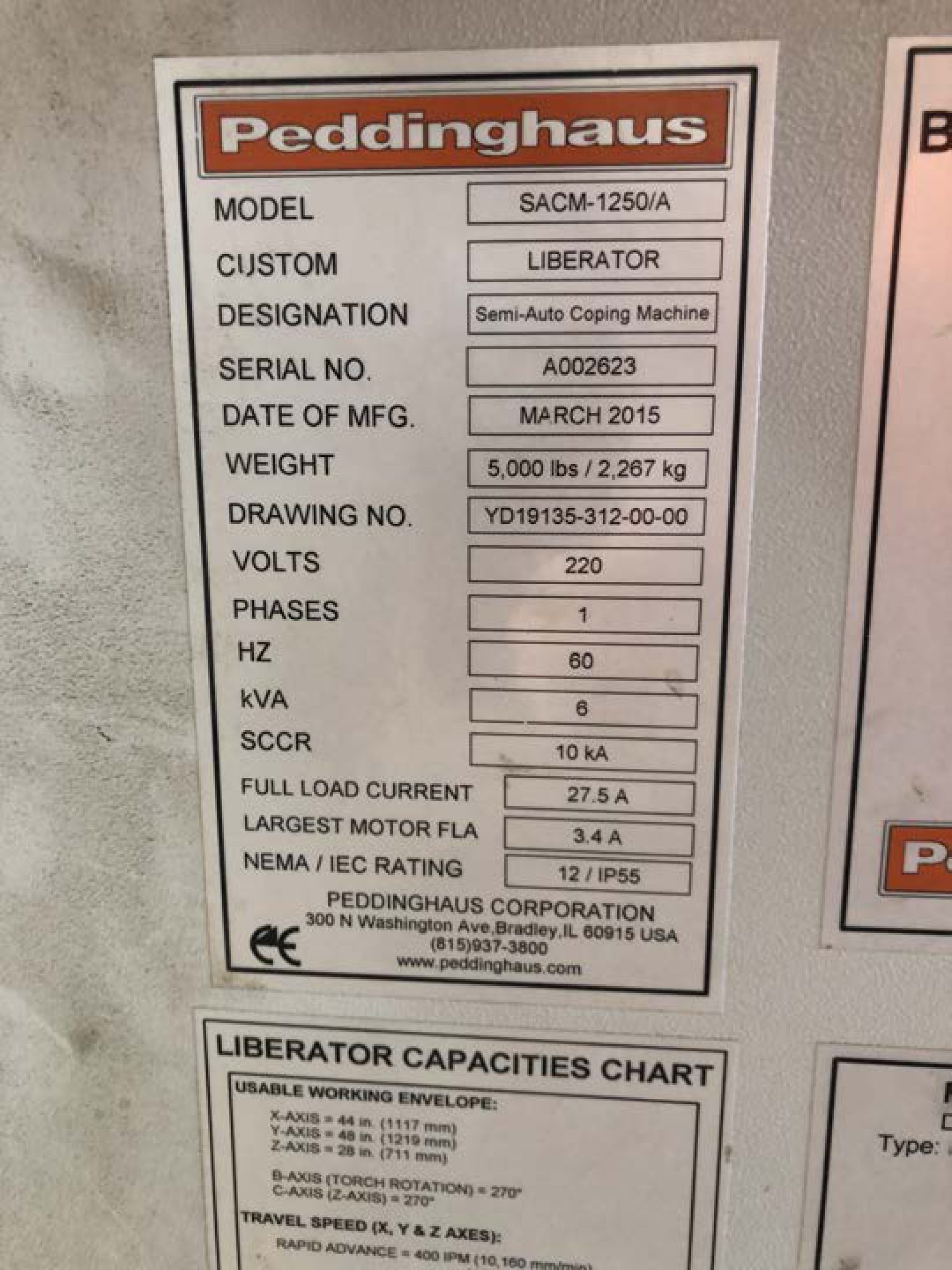

Used Peddinghaus Ocean Machinery - Liberator (2015) | Semi-auto Coping machine
Machine specifications
- Model: Liberator
- Year of Manufacturing: 2015
- Location: Los Angeles, CA
- Maximum profile size: 44" x 24" (1100mm x 600mm)
- Maximum plate width: 48" (1250mm)
- Flange bevels: +/- 45 degrees
- Web bevels: +/- 45 degrees (external only)
- Maximum material thickness: 6" (150mm)
- Type of Cuts Programmed: All cuts are programmable
- Traverse Speed: 100 - 400 in/min (2.5 - 10m/min)
- Cutting Speed: 7 - 30 in/min (170mm - 750mm/min)
- Accuracy: +/- 0.0625" (1.5mm)
- 3 Sides Thermal coping
- Manual Program or DSTV Import
- Computer hardware / controls
- "X"-axis (direction of flow): 46" (1168mm)
- "Y"-axis (cross travel): 76" (1930mm)
- "Z"-axis (vertical travel): 30" (762mm)
- "B"-axis (bevel angle): 270 degrees
- "C"-axis (torch rotation): 270 degrees
- Repeatability of X, Y & Z: +/- 0.001" (0.025mm)
- Width (min): 2" (50 mm)
- Width (max): 43/30" (1.100 mm)
- Length (min): 64.25" (1.632 mm)
- Length/Weight: Max 300 lbs/ft to a max of 18,000 lbs (8165 kg)
- X-axis feedrate: 100 ft/min (30.5 m/min)
