DEMO | V303: Easy Unloading and Loading

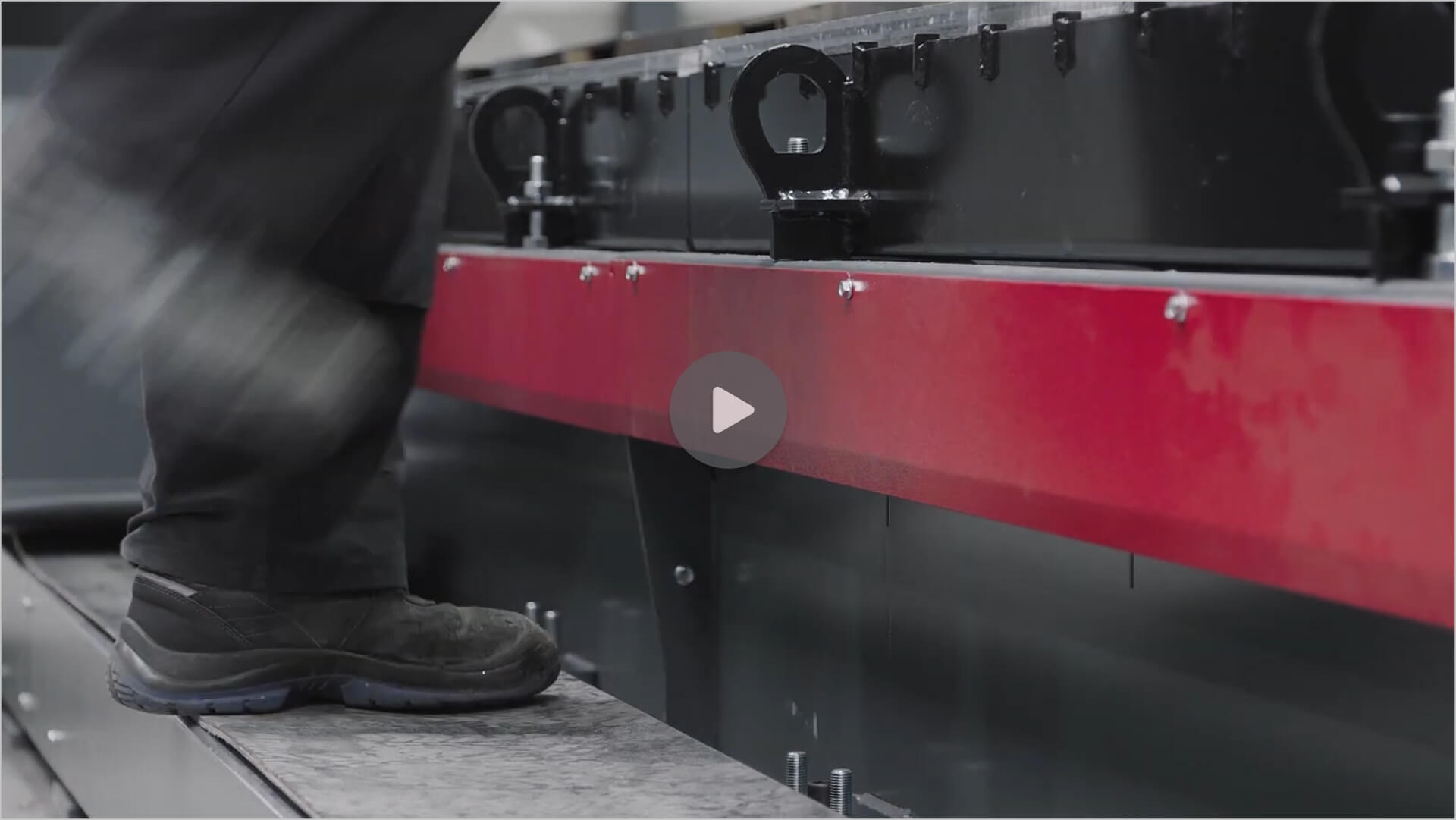

he V303 improves daily workflow with its intelligently designed X‑rail step‑over, created to make both loading and unloading significantly easier for operators. In busy production environments, operators can cross the machine rails hundreds of times per shift while positioning new plates, removing finished parts, or clearing skeletons. Traditional high rails slow down this movement and create physical strain. The V303 solves this with a smart, stair‑like step‑over geometry that reduces step height and enables smooth, natural crossing.

This design simplifies access to the cutting area, reduces operator fatigue, and keeps material flow running efficiently from one plate to the next. Whether placing new stock or retrieving finished components, the step‑over helps maintain productivity and safety without modifying the machine footprint.

Designed for efficient plate loading and part unloading

The X‑rail step‑over provides a low and stable access point, allowing operators to reach the table quickly from any direction. When loading new plates, operators can walk across the rails easily to position material precisely without taking long detours around the machine. This reduces handling time and speeds up the process of aligning plates for plasma or oxy‑fuel cutting.

During unloading, the reduced step height helps operators remove finished parts more comfortably, even when dealing with large or heavy components. Frequent unloading cycles become faster, and operators can maintain a steady rhythm without unnecessary strain. This feature is especially valuable when the job involves repetitive nests, long strips, or high part volumes.

By creating a smooth and direct path to the work area, the step‑over eliminates wasted motion and supports a more responsive workflow.

Improving daily workflow and reducing bottlenecks

Loading and unloading are frequent touchpoints in plate processing, and inefficiencies in these areas can delay the entire production flow. The X‑rail step‑over helps minimize these delays by ensuring that operators always have immediate, simple access to the table.

As buffer management continues running queued jobs, operators can quickly unload the previous nest and load the next plates with minimal interruption. This reduces the chance of the machine idling while waiting for manual tasks to be completed. The improved access also allows operators to retrieve parts in the optimal sequence, clearing space for the next job without disrupting other tasks in progress.

In small workshops or environments with limited floor space, the step‑over provides even greater value. Instead of requiring a wide walking path around the machine, the built‑in step allows operators to take the shortest and safest route directly across the bridge.

Reducing physical strain and supporting ergonomic work practices

Repeatedly stepping over high rails throughout the day can lead to fatigue, slower movement, and increased risk of tripping or imbalance, especially when carrying tools or parts. The V303 eliminates this issue with a low step height that is easy to navigate. This promotes healthier movement patterns, minimizes leg and back strain, and allows operators to work comfortably during long shifts.

When loading plates, operators frequently carry clamps or positioning tools. When unloading parts, they may transport components of varying size and weight. A lower, more stable step provides increased confidence and safety during these movements, helping maintain a smooth and injury‑free workflow.

Supporting consistent productivity across real industrial environments

The X‑rail step‑over is engineered as part of the V303’s robust mechanical framework. While providing ergonomic access, it also maintains the rigidity required for precise cutting. The helical rack and pinion drive and preloaded linear guides ensure that mechanical accuracy remains intact even with the lower access profile.

As production scales, the step‑over remains an essential contributor to workflow efficiency. Whether operators are loading thick plates for dual oxy‑fuel cutting, preparing plasma jobs queued through buffer management, or unloading long chained parts, the step‑over helps keep the process moving without unnecessary delays.

By combining ergonomic access with high mechanical performance, the V303 offers a balanced solution that benefits both productivity and operator well‑being.
