DEMO | V303: Magnetic Torch

The V303 streamlines daily cutting operations with its magnetic torch mounting system, designed to provide fast, calibration‑free torch changes and rapid recovery after collisions. In demanding production environments where both plasma and oxy‑fuel processes are used, operators need a reliable system that reduces downtime and keeps the workflow moving. The magnetic torch mount delivers exactly that by allowing both torch types to use the same mounting interface, creating a flexible and efficient cutting setup that supports continuous, high‑quality output.

This system enhances safety, minimizes interruptions, and ensures precise alignment throughout the machine’s lifetime, making it an essential component of the V303’s overall productivity.

A mounting system engineered for speed and accuracy

With the magnetic torch mount, torches can be connected or removed quickly without complex calibration procedures. The system uses two precisely aligned, calibration‑free drives that ensure the torch is always positioned in the correct orientation when mounted. This eliminates time‑consuming adjustments and allows operators to return to cutting almost immediately after maintenance or torch replacement.

The mount holds the torch firmly in place during cutting, ensuring stable and consistent results across straight cuts, bevels, and intricate contours. Whether switching between plasma and oxy‑fuel or replacing consumables, the operator benefits from a fast, reliable mounting system that removes unnecessary downtime.

Immediate recovery after collisions

Collisions are an unavoidable part of plate processing, especially when cutting remnants, warped plates, or complex nests. The magnetic torch mount protects the torch and the machine by releasing the torch from its position when an unexpected impact occurs. This prevents damage to critical components and avoids misalignment issues that typically follow mechanical collisions.

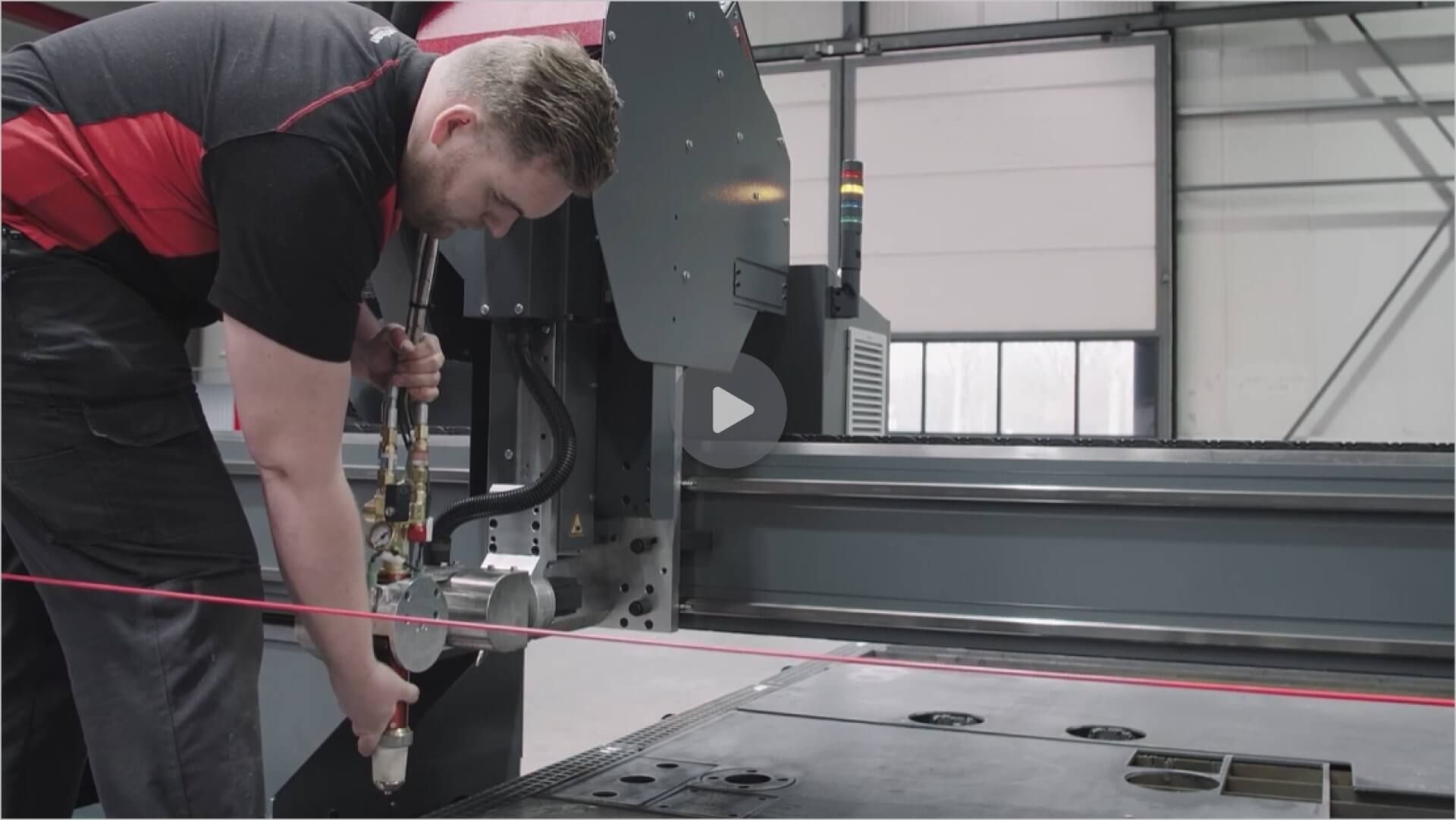

Once the obstruction is cleared, the operator simply places the torch back on the magnetic mount, which instantly resets it to the correct calibrated position. No fine‑tuning, sensor alignment, or manual corrections are required. This rapid recovery significantly reduces downtime and keeps the cutting process moving smoothly without compromising precision.

Simplifying multi‑process cutting

The ability to quickly exchange torches makes the V303 exceptionally flexible for shops that switch frequently between plasma and oxy‑fuel cutting. Both processes use the same magnetic mounting interface, allowing operators to transition from one cutting technology to the other in a matter of seconds. This flexibility is ideal for operations with diverse material thicknesses or varying production needs.

Combined with the V303’s intuitive control software, the system automatically recognizes the installed torch type and adjusts cutting parameters accordingly. This supports consistent part quality and removes the risk of operator error during process changes.

Supporting reliable performance across long production shifts

The magnetic torch mount plays an important role in maintaining consistent cut quality during prolonged operation. By ensuring that the torch is always mounted in exactly the same position, the V303 maintains stable edge quality, correct bevel angles, and accurate geometry across the entire job.

When used alongside key technologies such as TrueVolt height control, Xtensive Bevel Technology, and Instant Cut, the magnetic mount becomes part of a fully integrated cutting system that prioritizes accuracy, reliability, and ease of operation. Whether cutting thick plates with dual oxy‑fuel torches or executing detailed plasma nests, the mount helps preserve alignment and quality throughout.

Designed for industrial durability and operator convenience

The magnetic torch mount is robustly engineered to withstand the demanding conditions of heavy plate fabrication. The mount resists vibration, maintains rigidity during high‑speed plasma cutting, and supports the steady, controlled motion required for precise oxy‑fuel operations.

For operators, this translates to less time spent on setup, fewer interruptions, and more confidence in the accuracy of every cut. The ability to quickly remove the torch also simplifies routine tasks such as nozzle changes, consumable checks, and cleaning, contributing to an efficient workflow and reduced machine downtime.

By reducing physical effort, speeding up tasks, and improving safety, the magnetic torch mount enhances both productivity and day‑to‑day usability of the V303.
