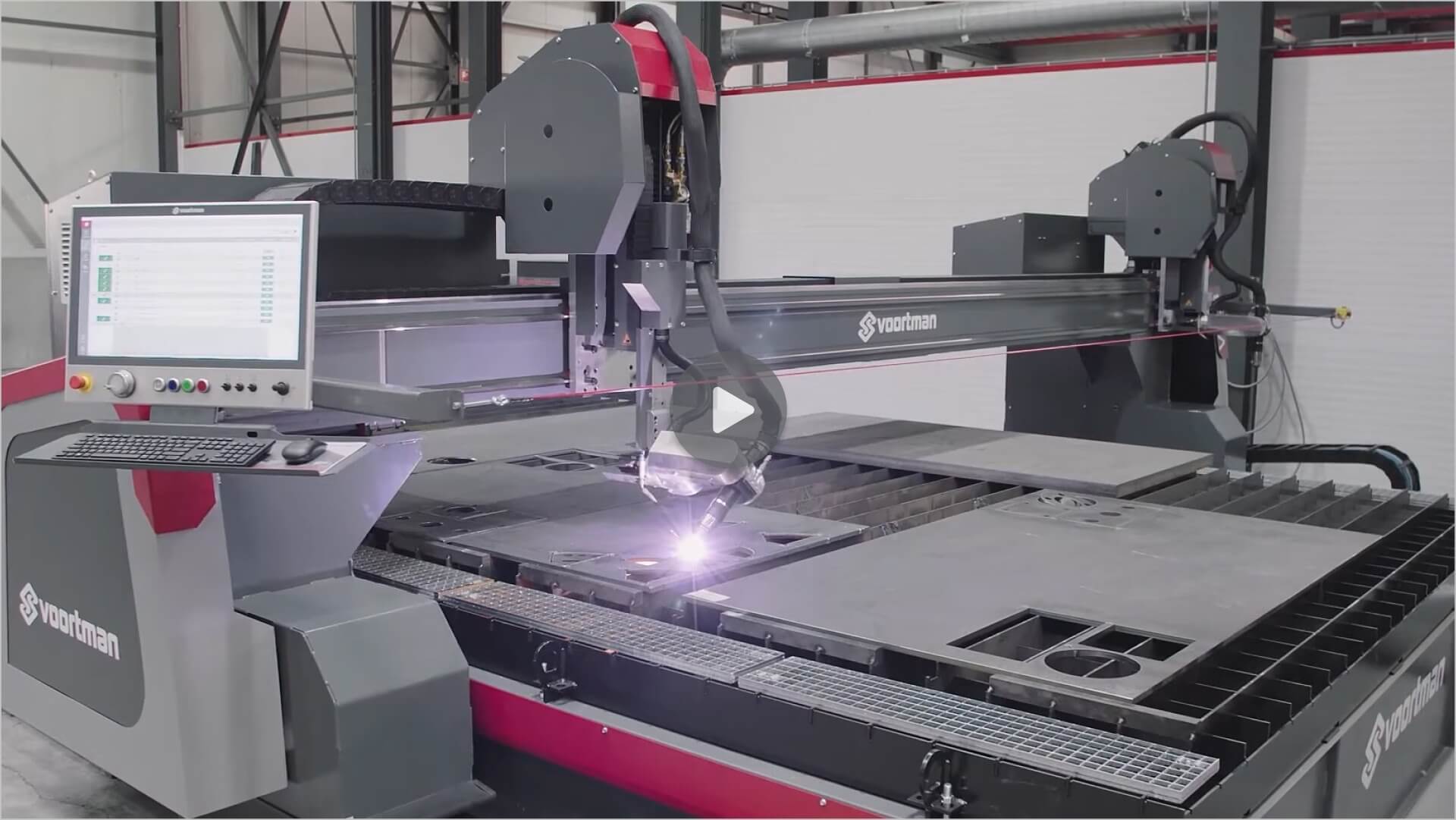

DEMO | V303: Synchronized Movements

The V303 achieves high accuracy and dependable throughput through perfectly synchronized movements across its gantry, drives, and torch systems. By coordinating acceleration, velocity, and path control in real time, the machine maintains smooth motion along straight lines, arcs, tight radii, and bevel paths. This synchronization is essential for producing clean edges, accurate geometries, and repeatable results during continuous operation.

For manufacturers running complex nests, small features, or long bevel sequences, synchronized movements keep the torch stable, reduce vibration, and ensure that the cutting process remains consistent from the first part to the last.

A stable mechanical platform that enables true synchronization

At the core of synchronized motion is the V303’s rigid mechanical foundation. A solid gantry, helical rack and pinion drives, and preloaded linear guides work together to provide controlled, low‑play movement at cutting speeds. Forces are distributed evenly to reduce wear and preserve positioning accuracy better than 0.1 mm. The result is smooth, predictable motion that supports fine detailing and long straight cuts with equal confidence.

This mechanical integrity allows motion commands to be executed precisely, so the torch follows the programmed path without chatter or drift. Even during rapid changes in direction, the V303 maintains stable dynamics that protect edge quality and keep kerf width consistent.

Coordinated dynamics for clean edges and tight tolerances

Synchronized movements align the timing of torch motion, torch height behavior, and process parameters. During plasma cutting, TrueVolt height control maintains correct stand‑off while the motion system delivers the exact feed rate required for each contour segment. The alignment between these systems minimizes dross, reduces taper, and preserves part geometry across the entire nest.

When bevel cutting with the non‑TCP bevel head, synchronized motion ensures that angle changes, tilt, and path corrections are applied in concert. The torch transitions smoothly through bevel sequences, keeping angles consistent and edges sharp without manual correction.

Faster transitions and fewer non‑cutting delays

The V303’s synchronized motion control directly supports speed‑focused features that reduce cycle time. Instant Cut benefits from coordinated lift heights, traverse speeds, and approach timing between contours, which shortens the gap between individual cuts. Chain Cutting gains stability as the torch moves from one linked contour to the next without unnecessary pauses, reducing pierces and maintaining a consistent thermal condition in the plate.

These combined effects keep the torch engaged longer and reduce idle movements, which translates to measurable time savings on large nests or high‑volume batches.

Reliability during long shifts and complex nests

Real production often involves frequent process changes, mixed geometries, and sequences that run for many hours. Synchronized movements keep results consistent under these conditions. The machine’s control system maintains coordinated acceleration profiles, so part accuracy does not degrade over time or as conditions change.

If an interruption occurs, the improved resume function restarts with an automatic arc lead‑in that blends back into the contour. Because motion, height control, and kerf compensation remain synchronized, the restart does not leave marks or reduce edge quality. This preserves material, avoids rework, and keeps the schedule on track.

Seamless integration with automation and workflow tools

The benefits of synchronized movements extend across the V303’s automated workflow. With buffer management, the machine processes queued jobs continuously. Synchronized motion ensures that each job in the queue runs with the same precision as the first, even as plate conditions vary. The dashboard and scheduling tools provide clear insight into run times and upcoming actions, allowing operators to plan plate changes and unloading without slowing the machine.

Plate Verification helps position nests precisely, and synchronized motion ensures that once cutting begins, paths are executed accurately with minimal deviation. Whether working on new plates or remnants, the coordination of motion and process control delivers dependable results.

Built for industrial durability and consistent accuracy

Synchronized movements depend on long‑term mechanical health. The V303 protects its motion systems with flexible covers, robust components, and a design that resists vibration during high‑speed plasma or steady oxy‑fuel cutting. The magnetic torch mount contributes to reliability by preserving calibration after quick changeovers or collision recovery, so synchronized behavior resumes immediately without manual alignment.

As production needs grow, the V303 scales with extended X‑rails, larger tables, or a second gantry on the same rails. Synchronized control maintains accuracy across these configurations, keeping cut quality consistent while throughput increases.
