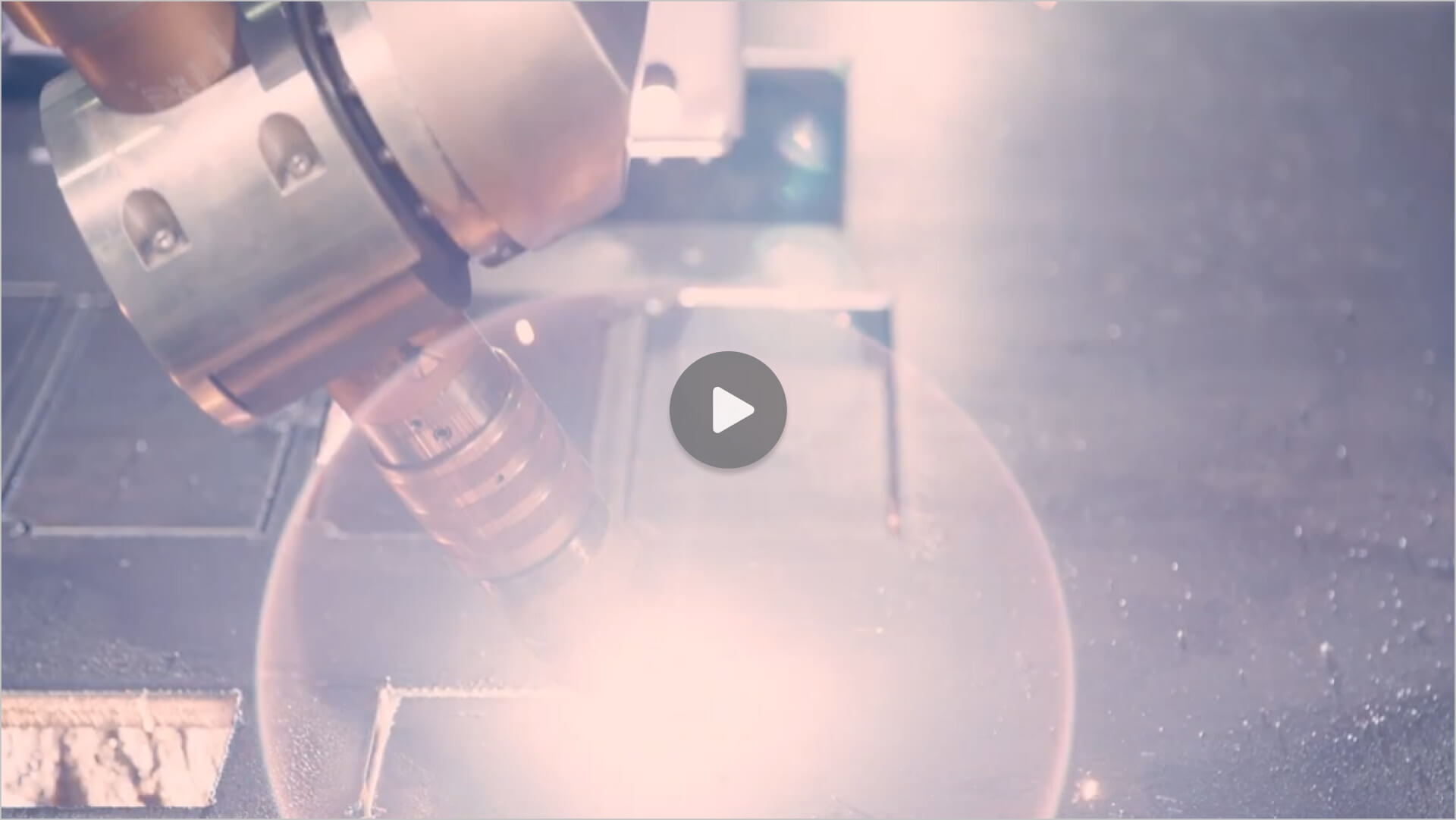

DEMO | V304: Bevel Cutting Without Cornerloops

Producing high-quality bevels requires more than precise torch control. Traditional bevel cutting often relies on cornerloops, where the cutting head performs additional movements around corners to maintain cut quality. While effective, these extra motions increase cutting time and can introduce inconsistencies between parts.

The V304 eliminates the need for cornerloops by combining advanced motion control, intelligent software, and precise bevel technology. This enables the machine to maintain continuous movement through corners while preserving bevel accuracy, resulting in faster production and superior part quality.

Continuous Motion Through Complex Contours

Sharp corners and direction changes are some of the most demanding aspects of bevel cutting. Conventional systems frequently slow down or perform additional looping movements to maintain the desired bevel geometry. These cornerloops increase cycle times and create unnecessary machine movement.

The V304's advanced cutting algorithms optimize torch motion through corners, allowing the machine to maintain accurate bevel angles without performing extra loops. This creates a smoother cutting process and reduces overall cutting time, particularly on parts with complex geometries.

Reducing Production Time

Many fabricated parts contain numerous corners, intersections, and contour changes. When cornerloops are required at every transition, production times can increase significantly.

By eliminating these additional movements, the V304 shortens cutting cycles while maintaining cut quality. Operators can process more parts in the same amount of time, increasing machine productivity and improving throughput across the workshop.

Consistent Bevel Quality Across the Entire Part

Maintaining a consistent bevel angle is critical for weld preparation and assembly. Variations in bevel geometry can create fit-up issues, increase weld volume, and require additional manual correction.

The V304 maintains stable torch positioning and controlled movement throughout the cutting process. As the cutting head transitions through corners, the system continuously adjusts motion parameters to preserve the programmed bevel geometry. This results in accurate, repeatable bevels from start to finish, even on complex parts.

Minimizing Rework and Secondary Operations

Poor corner quality often leads to grinding, edge preparation, or manual corrections before welding. These secondary operations consume valuable labor time and slow the production process.

With cornerloop-free bevel cutting, parts leave the machine with cleaner transitions and more consistent edge quality. Operators spend less time correcting corner imperfections, allowing components to move more efficiently to the next production stage.

Supporting Weld-Ready Part Production

Modern fabrication shops increasingly aim to produce parts that are ready for assembly directly after cutting. Achieving this requires reliable bevel quality throughout the entire contour, including corners and intersections.

The V304 combines its non-TCP bevel unit with Xtensive Bevel Technology to continuously manage bevel geometry during cutting. This ensures that weld preparations remain accurate across straight sections, curves, and corner transitions, supporting efficient downstream welding operations.

Improving Material Utilization and Process Efficiency

Reducing unnecessary machine movement not only improves productivity but also contributes to overall process efficiency. The cutting head follows a more optimized toolpath, reducing non-productive motion and enabling smoother operation.

This efficient approach helps manufacturers produce high-quality bevel parts with less processing time while maintaining the dimensional accuracy required for demanding fabrication projects.

Engineered for High-Performance Bevel Cutting

The V304's rigid machine frame, precision linear guides, and high-performance drive system provide the stability required for advanced bevel cutting applications. Combined with intelligent software control, the machine delivers accurate bevels without relying on traditional cornerloops.

Whether producing weld preparations for structural steel, heavy equipment, offshore applications, or complex fabricated assemblies, the V304 achieves consistent bevel quality while maximizing productivity.

By eliminating cornerloops, the V304 creates a faster, smoother, and more efficient bevel cutting process, helping manufacturers improve part quality, reduce rework, and increase output without compromising accuracy.
