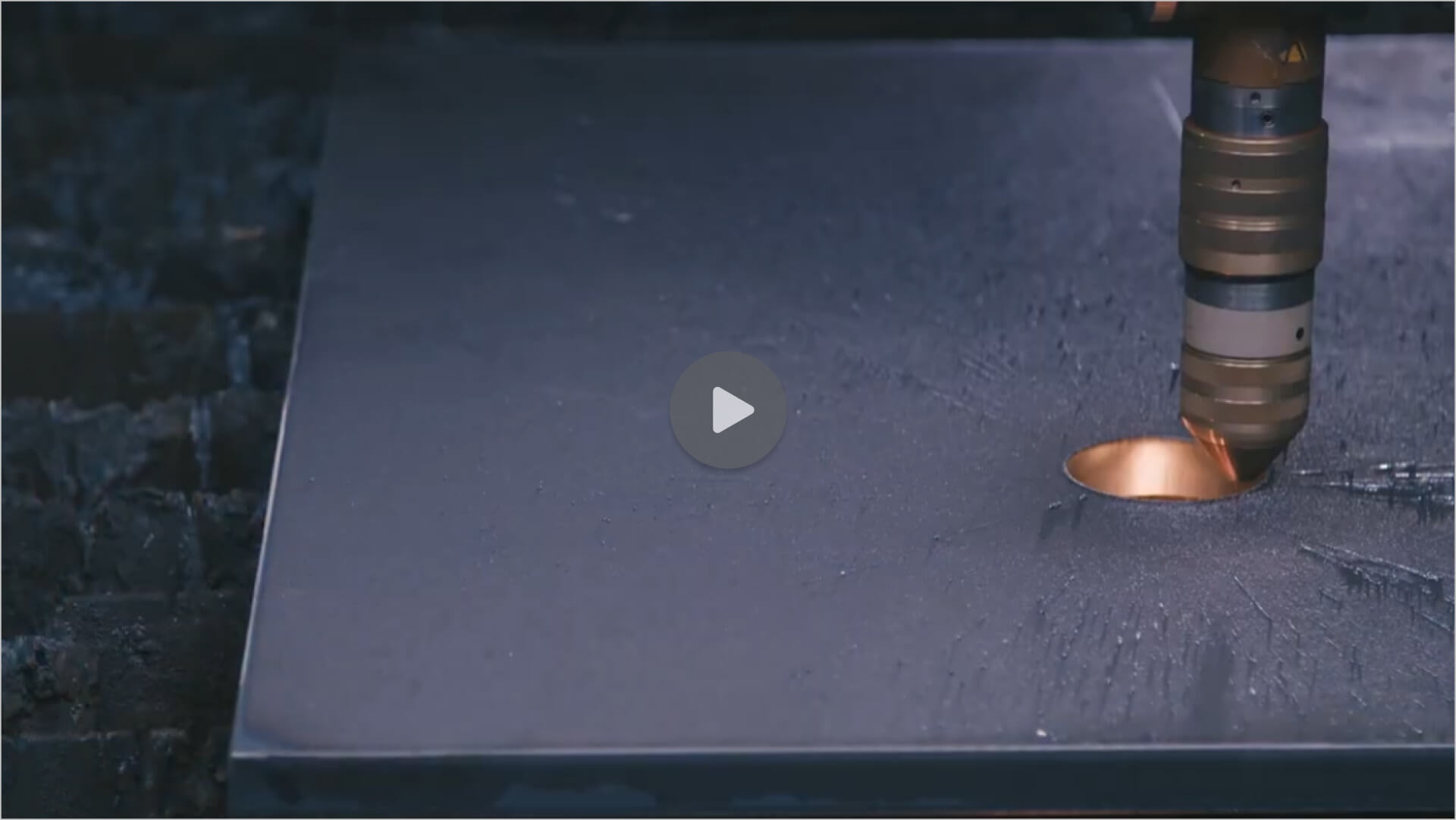

DEMO | V304: Extensive Hole Performance

Producing high-quality holes is a critical requirement in modern steel fabrication. Poor hole quality can create challenges during assembly, increase rework, and require additional drilling or machining before parts are ready for use. As fabrication shops seek to reduce processing steps and improve efficiency, the ability to cut accurate holes directly on the machine becomes increasingly valuable.

The V304 is engineered to deliver exceptional hole performance across a wide range of diameters and material thicknesses. By combining a rigid machine structure, precise X & Y movement, and advanced plasma cutting technology, the system produces accurate holes with excellent consistency and repeatability.

Achieving Superior Hole Quality

Hole quality depends on the machine's ability to maintain precise positioning and stable cutting conditions throughout the entire contour. Even small deviations can affect roundness, diameter accuracy, and edge quality.

The V304's advanced motion system ensures smooth, controlled movement around circular contours, allowing the cutting head to follow programmed paths with high precision. This results in cleaner, rounder holes that meet demanding production requirements.

Reducing the Need for Secondary Operations

Traditional cutting methods often require holes to be drilled, reamed, or machined after cutting to achieve the required accuracy. These additional operations increase production time and labor costs.

With the V304's extensive hole performance capabilities, many holes can be produced directly to specification during the cutting process. This reduces dependency on secondary processing and enables parts to move more efficiently to assembly or welding.

Consistent Results Across Different Hole Sizes

Fabrication projects often require a wide variety of hole diameters within a single nest. Maintaining consistent quality across both small and large holes can be challenging without precise machine control.

The V304 delivers reliable performance across a broad range of hole sizes by combining accurate servo-driven motion with intelligent cutting parameter control. This ensures consistent hole geometry and edge quality throughout the production run.

Supporting Assembly-Ready Part Production

Accurate holes play a crucial role in downstream assembly processes. Poorly positioned or irregular holes can cause alignment issues, increase fitting time, and delay production schedules.

The V304 helps manufacturers produce assembly-ready components by maintaining precise hole positioning and dimensional accuracy. This improves fit-up quality and supports efficient bolting, fastening, and structural assembly operations.

Maximizing Productivity During Nesting Operations

Many production nests contain dozens or even hundreds of holes. In these applications, cutting efficiency and repeatability become critical factors for overall productivity.

The V304 is designed to maintain high performance throughout extensive hole-cutting operations. Its stable mechanical construction and optimized motion control allow the machine to process large quantities of holes efficiently while maintaining consistent quality from the first part to the last.

Maintaining Accuracy Through Advanced Motion Control

Hole quality is closely linked to machine dynamics. Rapid acceleration, controlled deceleration, and smooth contour following are essential for creating accurate circular features.

The V304 utilizes precision linear guides, helical rack-and-pinion drives, and advanced servo technology to achieve controlled motion throughout the cutting process. This results in improved roundness, tighter tolerances, and more predictable cutting performance.

Built for Demanding Fabrication Applications

Whether producing structural steel connections, machine components, base plates, or heavy industrial assemblies, reliable hole performance is critical to production success.

The V304 combines its robust machine frame, advanced cutting technology, and intelligent software controls to deliver consistent hole quality in demanding manufacturing environments. Operators can confidently produce large volumes of holes while maintaining the accuracy required for modern fabrication standards.

By combining precise motion control, stable cutting performance, and intelligent process optimization, the V304 delivers extensive hole performance that reduces rework, improves assembly accuracy, and increases overall production efficiency.
