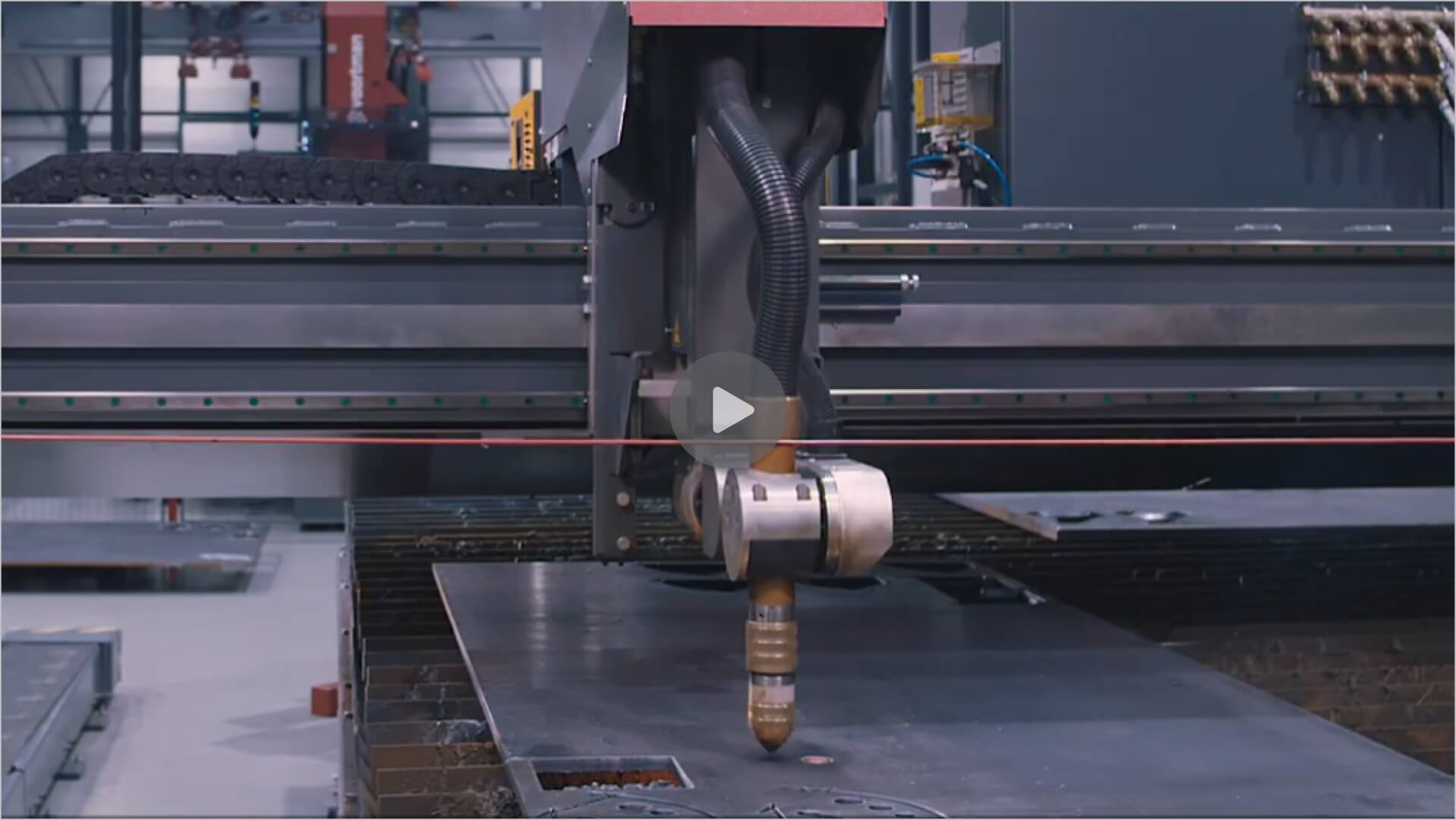

DEMO | V304: Height Control

Every cutting operation begins with positioning the torch at the correct height above the material. While this process may only take a few seconds, repeated height measurements across hundreds of pierces can significantly impact overall production efficiency. Slow positioning cycles increase non-productive machine time and reduce throughput throughout the day.

The V304 is equipped with a fast height control system that minimizes positioning time while maintaining the accuracy required for high-quality plasma and oxy-fuel cutting. By rapidly detecting plate height and continuously adjusting torch position, the machine helps maximize productive cutting time and improve overall workflow efficiency.

Faster Positioning Before Every Pierce

Traditional height-setting procedures can create delays, particularly when processing nests with a large number of pierces. Each measurement cycle adds time before cutting can begin.

The V304's fast height control system quickly determines the optimal torch position and transitions efficiently into the cutting process. By reducing the time required for positioning, the machine spends more time cutting and less time preparing for the next operation.

Increasing Productivity on Hole-Rich Nests

Many production jobs contain a high density of holes, slots, and internal contours. These parts often require frequent pierces, making positioning speed a critical factor in overall cycle time.

The V304 helps reduce cumulative delays by accelerating height measurement and positioning procedures throughout the nest. As a result, manufacturers can process more parts within the same production window and improve machine utilization.

Maintaining Optimal Torch Height During Cutting

Accurate height control is essential for achieving consistent cut quality. Steel plates can contain surface irregularities, warping, or thermal distortion that affect the distance between the torch and material.

The V304 continuously monitors and adjusts the cutting height throughout the process. This ensures the torch remains at the optimal position, helping maintain edge quality, dimensional accuracy, and cutting performance across the entire plate.

Improving Cut Quality and Consistency

Torch height directly influences cut edge quality, bevel accuracy, and hole performance. Even small variations can affect the final result.

With fast and precise height control, the V304 maintains stable cutting conditions during straight cuts, contours, holes, and bevel operations. This contributes to cleaner edges, better hole quality, and more consistent parts throughout production.

Reducing Non-Productive Machine Time

Machine productivity is determined not only by cutting speed but also by how efficiently the machine performs supporting processes. Height measurement, positioning, and torch setup are repeated continuously throughout the day.

By optimizing these actions, the V304 reduces non-cutting time and increases overall throughput. Operators benefit from shorter cycle times and improved production efficiency without compromising quality.

Supporting Automated Production Workflows

Modern fabrication facilities increasingly rely on automation to maximize output and reduce manual intervention. Fast height control plays an important role in maintaining efficient automated cutting operations.

The V304 automatically manages torch positioning and height correction, reducing the need for operator involvement and helping maintain a smooth, uninterrupted production flow.

Reliable Performance Across Different Materials

Material thickness, plate condition, and application requirements can vary significantly between jobs. The height control system must adapt quickly while maintaining accuracy.

The V304 is designed to perform reliably across a wide range of materials and cutting applications, ensuring consistent positioning performance whether producing structural steel components, machine parts, bevel cuts, or complex production nests.

Engineered for Maximum Cutting Efficiency

The V304 combines its fast height control system with precision motion technology, intelligent software, and robust machine construction to create a highly productive cutting platform. Together, these technologies optimize every stage of the cutting process, from positioning and piercing to final part production.

By reducing positioning time and maintaining optimal torch height throughout the cut, the V304 increases productivity, improves part quality, and helps manufacturers maximize the performance of their plate processing operations.
