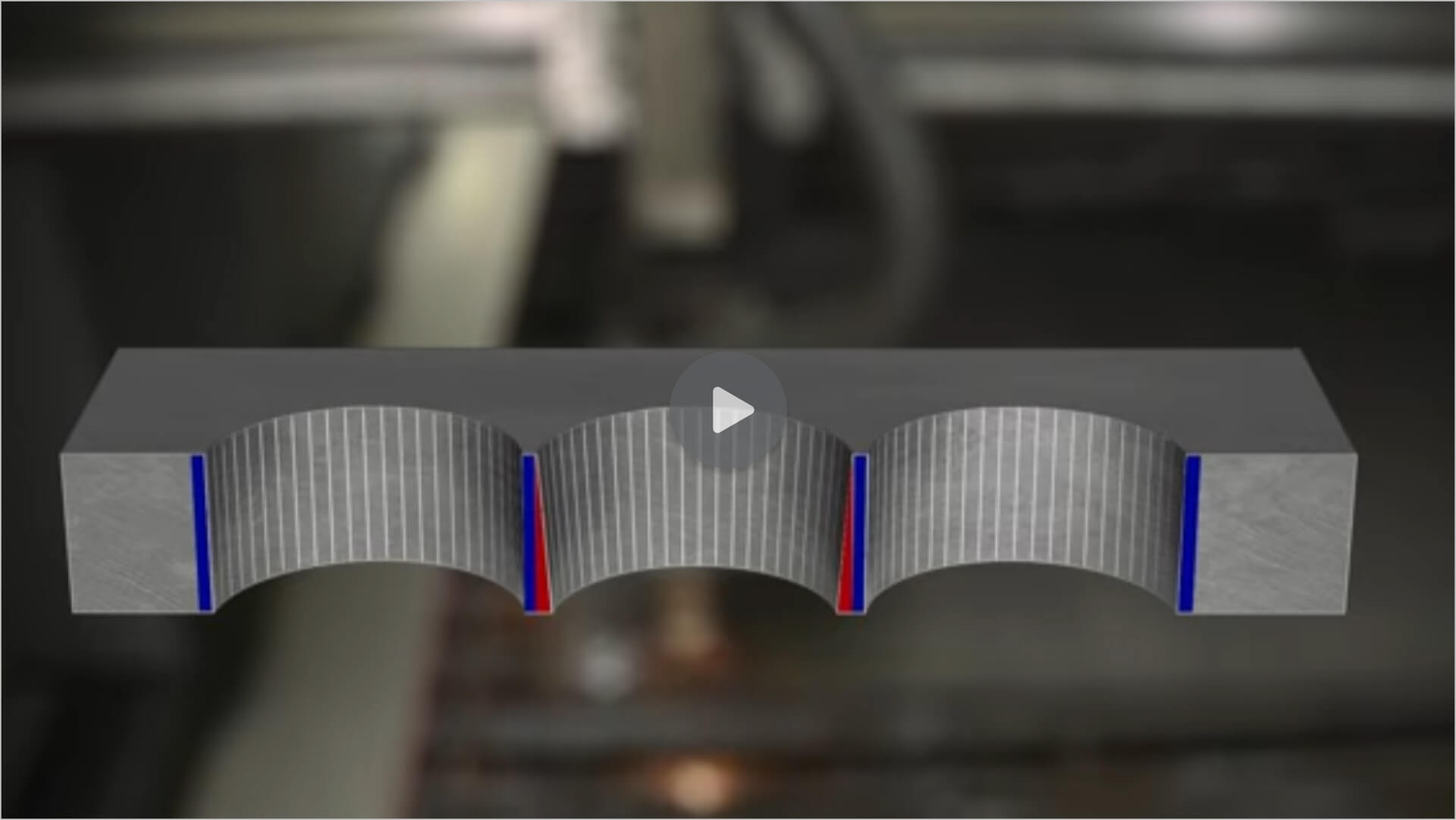

DEMO | V304: I-Cut Correction

Producing high-quality bevels can be challenging when cutting conditions change during the process. Heat input, material stresses, and plate inconsistencies can all influence the final bevel geometry. Even small deviations in bevel angle or cut position can create fit-up problems, increase weld preparation time, and require costly rework.

The V304 addresses these challenges with I-Cut Correction, an intelligent technology that continuously compensates for cutting variations during bevel operations. By automatically correcting deviations as they occur, the system helps ensure consistent bevel quality and more accurate finished parts.

Automatically Correcting Bevel Deviations

During bevel cutting, thermal influences and material behavior can affect the actual cut path compared to the programmed contour. Without correction, these deviations may lead to inaccurate bevels and inconsistent weld preparations.

I-Cut Correction monitors cutting conditions and applies automatic adjustments where necessary. This helps maintain the intended bevel geometry throughout the cut, improving the consistency and reliability of produced parts.

Achieving Better Fit-Up Quality

Accurate bevels are essential for efficient welding and assembly. Variations in bevel angle or edge geometry can create gaps, alignment issues, and additional preparation work before welding can begin.

The V304's I-Cut Correction technology helps ensure that bevel edges remain within specification, resulting in improved fit-up between components. This supports faster assembly processes and contributes to higher overall product quality.

Reducing Rework and Secondary Processing

Inaccurate bevels often require manual grinding, edge corrections, or additional machining before parts can move to the next production stage. These extra operations consume labor, increase production costs, and extend lead times.

By correcting deviations during the cutting process, I-Cut Correction reduces the need for secondary adjustments. Operators can produce parts that are closer to their intended dimensions directly from the cutting table, minimizing rework and improving efficiency.

Maintaining Quality on Complex Bevel Parts

Complex geometries place additional demands on the cutting process. Long bevels, sharp transitions, and intricate contours increase the likelihood of dimensional variations if deviations are not actively managed.

The V304 continuously applies intelligent correction throughout these challenging cutting paths, helping maintain bevel accuracy across the entire part. This results in more consistent quality, even on demanding fabrication projects.

Supporting High-Precision Weld Preparations

Modern fabrication industries increasingly require weld-ready components that can move directly from cutting to assembly. Achieving this level of quality depends on maintaining accurate bevel geometry throughout production.

I-Cut Correction works alongside the V304's non-TCP bevel technology and Xtensive Bevel Technology to ensure precise weld preparations. Together, these systems help manufacturers produce high-quality bevels with greater confidence and repeatability.

Increasing Productivity Through Process Stability

Consistent cutting quality reduces production interruptions and eliminates the need for frequent manual corrections. Operators can focus on production rather than troubleshooting bevel inconsistencies or reworking completed components.

By improving process stability, I-Cut Correction helps manufacturers increase throughput while maintaining the high standards required for structural steel, heavy equipment, offshore, and industrial fabrication applications.

Built for Advanced Bevel Cutting Applications

The V304 combines I-Cut Correction with a rigid machine frame, precision motion control, advanced software, and high-performance bevel technology. This integrated approach allows the machine to maintain accurate cutting performance under demanding production conditions.

Whether producing single-bevel weld preparations, complex multi-angle cuts, or large structural components, the V304 delivers the consistency needed for modern fabrication environments.

By automatically correcting bevel deviations during cutting, I-Cut Correction helps the V304 improve fit-up quality, reduce rework, increase productivity, and deliver more accurate weld-ready parts straight from the cutting table.
