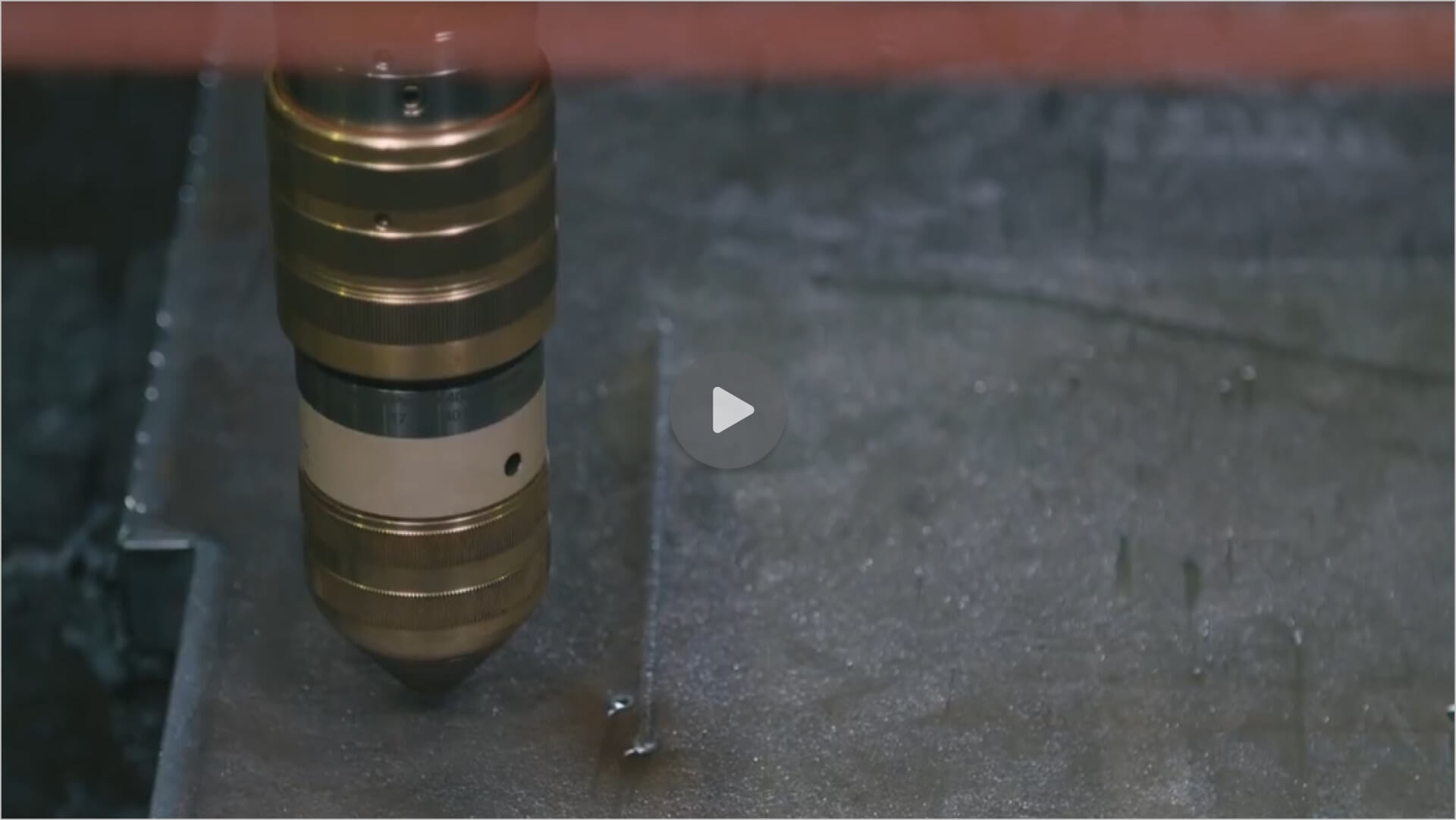

DEMO | V304: Marking & Carving

In modern steel fabrication, cutting a part is only one step in the production process. Parts often require identification numbers, assembly references, bend lines, welding positions, or production instructions before they move to fabrication, assembly, or installation. When these markings are applied manually, production can slow down and the risk of errors increases.

The V304 eliminates this challenge by integrating marking and carving directly into the cutting process. Operators can add essential production information to parts automatically, improving traceability, reducing manual labor, and creating a more efficient workflow from cutting to assembly.

Direct Part Identification During Processing

Every fabricated component must be identifiable throughout production. Missing or unclear identification can lead to confusion, sorting mistakes, and costly delays further down the line.

The V304 allows part numbers, job references, and other identification data to be marked directly onto the material. Because marking takes place before the part leaves the cutting table, components remain identifiable throughout the manufacturing process.

Improving Traceability Across Production

Traceability is becoming increasingly important in industries such as structural steel, offshore, heavy equipment, and energy production. Manufacturers need reliable methods to track parts from raw material through final assembly.

Integrated marking and carving help maintain this traceability by placing critical information directly on the component. This makes it easier to identify, organize, and verify parts throughout production without relying solely on labels or paperwork.

Reducing Manual Marking Operations

Manual marking requires additional labor and introduces opportunities for mistakes. Operators may need to locate the correct part, apply identification information, and verify that markings are accurate before production continues.

The V304 automates this process by combining marking and cutting into a single operation. This reduces manual handling, saves time, and allows operators to focus on higher-value production tasks.

Supporting Faster Assembly and Fabrication

Assembly teams often rely on reference markings to position components, prepare welds, or align parts correctly. Without clear markings, additional measuring and verification may be required.

The V304 can apply layout lines, reference points, welding indicators, and assembly marks directly onto the plate. This helps downstream operators work faster and more accurately, reducing preparation time during fabrication and assembly.

Maintaining Part Quality

Marking must be clear and visible while preserving the integrity of the material. The V304 is designed to create accurate, readable markings without negatively affecting the quality of the finished component.

By applying markings in a controlled manner, the machine ensures that identification and reference information remain legible while maintaining the dimensional accuracy required for production.

Increasing Productivity Through Process Integration

Combining multiple operations on one machine helps simplify production workflows. Instead of moving parts between separate stations for cutting and marking, manufacturers can complete both processes on a single platform.

This integrated approach reduces material handling, shortens production cycles, and improves overall shop efficiency. Parts leave the machine not only cut to specification but also ready for the next stage of manufacturing.

Ideal for Complex Fabrication Projects

Large projects often involve hundreds or thousands of individual components that must be identified and assembled correctly. Reliable marking helps prevent mix-ups and improves coordination throughout production.

The V304's marking and carving capabilities support these demanding applications by ensuring that each component carries the information needed for efficient processing and assembly.

Engineered for Modern Steel Manufacturing

The V304 combines integrated marking and carving with precision motion control, advanced software, and high-performance cutting technology. This enables manufacturers to improve traceability and productivity without adding extra process steps.

Whether producing structural steel components, machine parts, bridge sections, or complex fabricated assemblies, the V304 ensures critical part information remains attached to the component throughout production.

By integrating marking and carving directly into the cutting process, the V304 reduces manual work, improves traceability, accelerates assembly operations, and creates a more efficient manufacturing workflow from start to finish.
