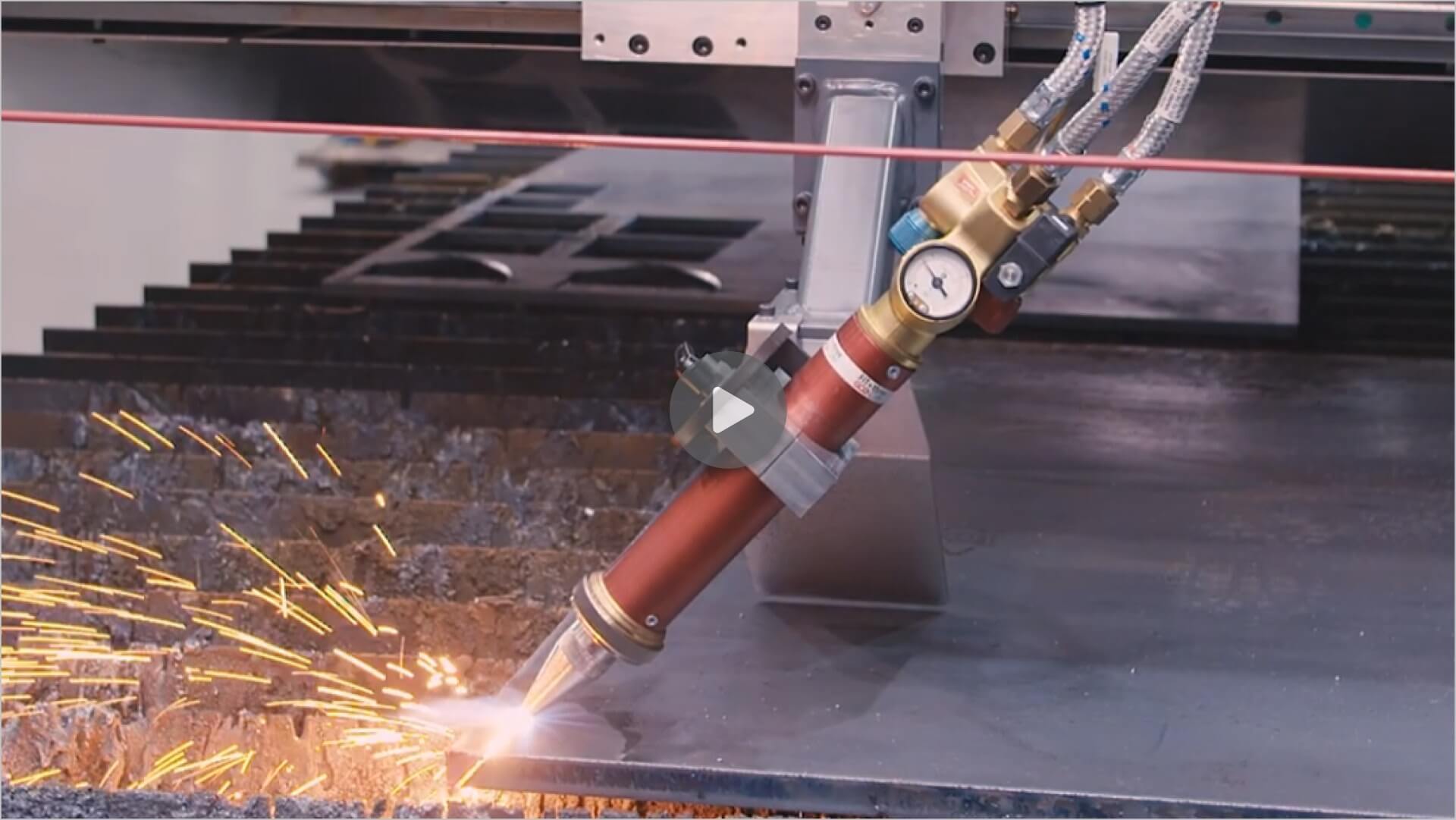

DEMO | V304: Oxy-Fuel Bevel Cutting

Many heavy fabrication projects require bevels to create proper weld preparations before assembly. Structural steel, offshore components, heavy machinery, and energy-sector applications often process thick materials where oxy-fuel cutting remains the preferred technology. Achieving accurate bevels on these materials is essential for maintaining fit-up quality, reducing weld volume, and improving overall production efficiency.

The V304 is designed to deliver precise oxy-fuel bevel cutting across a wide range of plate thicknesses. By integrating advanced bevel technology with a robust mechanical platform, the machine produces consistent weld preparations while minimizing manual intervention and secondary processing.

Accurate Bevel Geometry on Thick Plates

Producing bevels with the correct angle and edge geometry is critical for successful welding. Inaccurate bevels can result in poor fit-up, excessive weld material consumption, and additional preparation work.

The V304 maintains precise torch positioning throughout the cutting process, ensuring that programmed bevel angles are accurately reproduced on the finished part. This helps manufacturers achieve consistent weld preparations that meet demanding fabrication requirements.

Optimized for Heavy-Duty Oxy-Fuel Applications

Oxy-fuel cutting remains one of the most effective methods for processing thick steel plates. However, maintaining bevel quality across long cutting paths and heavy materials requires a stable and precise machine platform.

The V304 combines its heavy-duty machine construction with advanced motion control to deliver reliable bevel performance, even during extended cutting cycles. This stability contributes to consistent quality throughout production.

Improving Fit-Up and Assembly Efficiency

Well-executed bevels play an important role in downstream assembly and welding operations. Consistent bevel geometry helps ensure proper alignment between components and reduces the need for manual corrections.

The V304 produces bevels that support accurate fit-up, allowing welders and assemblers to work more efficiently. This contributes to shorter production times and improved overall workflow throughout the fabrication process.

Reducing Secondary Processing

Traditional bevel preparation methods may require grinding, machining, or manual edge correction before parts are ready for welding. These additional operations increase labor costs and extend lead times.

By producing high-quality bevels directly during the cutting process, the V304 minimizes the need for secondary finishing. Parts can move more quickly from cutting to assembly, helping manufacturers improve productivity and reduce operating costs.

Supporting Complex Bevel Requirements

Modern fabrication projects often require more than simple straight bevels. Complex geometries, varying bevel angles, and intricate contours demand advanced cutting capabilities.

The V304's oxy-fuel bevel cutting system is designed to handle challenging applications while maintaining consistent quality. Whether producing single-V, double-V, K-bevels, or other weld preparations, the machine delivers reliable and repeatable results.

Maintaining Consistent Quality Throughout Production

Consistency is essential when producing large quantities of beveled parts. Variations in bevel angle or edge quality can create challenges during welding and assembly.

The V304 uses precision-guided motion systems and intelligent control technology to maintain stable cutting conditions throughout the process. This results in repeatable bevel quality from the first part to the last.

Increasing Productivity for Heavy Fabrication

Fabricators processing thick materials need equipment capable of delivering both quality and throughput. The ability to produce weld-ready bevels directly on the cutting table helps eliminate bottlenecks and improve overall shop efficiency.

The V304 streamlines production by combining bevel preparation and cutting into a single operation. This reduces handling, shortens lead times, and increases machine utilization across a wide range of applications.

Engineered for Industrial Bevel Cutting Performance

The V304 integrates advanced oxy-fuel bevel cutting technology with a rigid machine frame, precision motion control, and intelligent software systems. Together, these features create a reliable solution for demanding fabrication environments.

Whether producing structural steel components, bridge sections, offshore structures, or heavy equipment parts, the V304 delivers accurate oxy-fuel bevels with the consistency and productivity required for modern manufacturing.

By combining advanced bevel technology with proven oxy-fuel cutting performance, the V304 enables manufacturers to produce high-quality weld preparations, reduce rework, and improve productivity in heavy plate processing applications.
