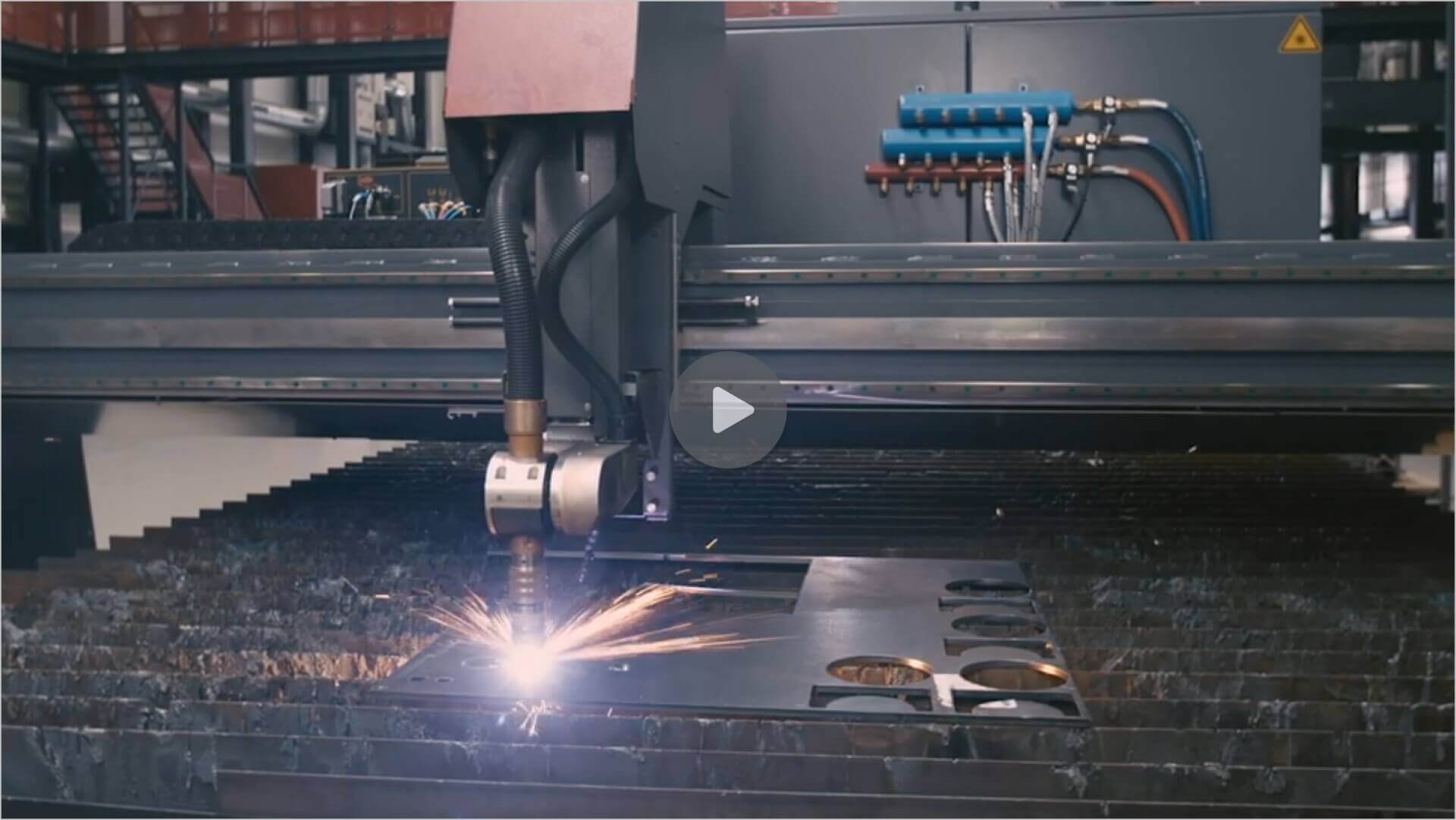

DEMO | V304: X & Y Movement

The V304 is engineered to provide highly accurate X & Y movement across the entire cutting area. In plate processing, motion accuracy directly impacts cut quality, dimensional precision, and production efficiency. Whether producing simple parts, complex bevels, or precise countersunk holes, stable and repeatable movement ensures every cut meets the required specifications.

By combining a rigid machine frame, precision linear guides, and advanced drive technology, the V304 maintains smooth motion and accurate positioning throughout every production cycle. This enables operators to achieve consistent results regardless of part size, material thickness, or cutting process.

Smooth and Accurate Positioning Across the Full Table

The V304 uses precision-engineered linear motion components to ensure accurate travel in both the X and Y axes. The machine accelerates smoothly, follows cutting contours precisely, and maintains positioning accuracy even during demanding production runs.

This level of control is especially important when cutting complex geometries requiring frequent direction changes. The stable motion system minimizes deviations and helps maintain dimensional accuracy throughout the entire cutting process.

Improving Part Quality Through Motion Precision

Every movement made by the cutting head influences the final quality of the part. Inaccurate motion can lead to dimensional variations, uneven contours, or inconsistent hole quality. The V304’s advanced motion system ensures the cutting head follows programmed toolpaths precisely, resulting in cleaner edges and more consistent parts.

For applications such as countersunk holes, bevel preparation, and assembly-ready components, accurate X & Y positioning helps maintain tight tolerances and reduces the need for secondary processing.

Reliable Performance During High-Speed Cutting

Maintaining accuracy at higher cutting speeds is critical for productivity. The V304 combines powerful servo-driven motion with a rigid mechanical structure, allowing the machine to move efficiently without sacrificing precision.

The smooth synchronization between the X and Y axes reduces vibration and ensures stable cutting performance, even when processing nested parts with complex contours. This enables manufacturers to increase throughput while maintaining consistent cut quality throughout production.

Supporting Accurate Beveling and Countersunk Hole Production

Advanced applications such as bevel cutting and countersunk hole production require precise torch positioning and highly controlled movement. Even minor deviations can affect hole geometry, bevel angles, or fit-up quality during assembly.

The V304's accurate axis movement works together with the non-TCP bevel unit and Xtensive Bevel Technology to maintain the correct cutting position throughout the process. This results in repeatable bevel quality, accurate countersunk holes, and reliable part dimensions from the first part to the last.

Reducing Rework and Increasing Productivity

Consistent motion accuracy contributes directly to production efficiency. When parts are cut accurately the first time, operators spend less time correcting dimensional issues, grinding edges, or reprocessing components.

The V304's precise X & Y movement helps reduce scrap, minimize rework, and improve downstream assembly processes. This allows manufacturers to maintain a smoother workflow while maximizing machine uptime and material utilization.

Built for Long-Term Accuracy

Industrial cutting environments place significant demands on machine mechanics. The V304 is designed to maintain positioning accuracy over years of operation through its robust frame construction, precision linear guides, and durable helical rack-and-pinion drive system.

This mechanical stability ensures reliable performance even under continuous heavy-duty use. Whether processing large structural components, complex bevels, or precision-cut assemblies, the V304 delivers the motion accuracy required for dependable production results.

By combining advanced motion control, rigid mechanical construction, and high-performance drive technology, the V304 provides precise X & Y movement that supports superior cut quality, improved productivity, and consistent manufacturing performance.
