V845
HEAVY-DUTY LASER CUTTING OF MEDIUM TO BIG OPEN PROFILES
The Voortman V845 combines advanced automation with precision 3D laser cutting, delivering weld-ready results with zero waste and minimal post-processing.
- Cuts H/I profiles, round tubes and square tubes up to 2.4 tons (5,300 lbs) with ease; ideal for heavy, complex projects.
- 3D bevel cutting up to 45° delivers weld-ready edges in one step.
- Backside cutting and zero tailing maximize material use for zero waste.
- 0.1 mm (1/254”) accuracy and quality components ensure consistent, low-rework results.
- Fully enclosed and Laser Class 1 certified for safe, efficient operation.
Compatible software:
Lantek Flex3D
OVERVIEW
The Voortman V845 handles H/I profiles, round tubes and square tubes up to 2,4 tons (5,300 lbs) providing steel fabricators with the required flexibility. Its robust loading system centers each profile with high clamping force and adjusts gently for thinner materials. This protects your products and ensures accurate, high-quality cuts. With an intuitive interface, high-power laser options, and a bevel cutting head, the V845 delivers production-ready parts with minimal downtime. Its solid design performs under pressure. With the V845, you keep your process moving and your results consistent.
APPLICATIONS
HIGHLIGHTS
PREMIUM DESIGN, PROVEN SAFETY
The V845 is a fully enclosed fiber laser system, compliant with Laser Safety Class 1. This guarantees maximum safety for operators during all cutting operations. Noise‑damping chain segments ensure quiet processing for a pleasant working environment.
BACK-SIDE CUTTING WITH ZERO WASTE MATERIAL
The innovative 3-chuck design enables full-profile rotation and automatic repositioning for high-quality backside cutting. It delivers continuous, uninterrupted cutting of long profiles with zero waste. If you do have remnants, the V845 handles remnants up to 800 mm (31 1/2”) automatically. The result: higher productivity at lower operational costs.
FLEXIBILITY IN HEAVY-DUTY PROCESSING
Engineered for strength, the V845 processes round, square, and rectangular profiles up to 2.4 tons (5,300 lbs), including H/I profiles up to 350 × 350 mm (13 13/16" × 13 13/16"). Its automatically calibrated cutting head ensures accurate results on varying thicknesses, shapes, and sizes.
BENEFITS
MINIMAL POST-PROCESSING
Fiber laser cutting delivers clean, production-ready parts. Unlike plasma, which often leaves behind residual slag, the V845 delivers high-quality cuts with clean edges and precise finishes. This minimizes post-processing, saving time and money.
SIMPLIFIED USABILITY

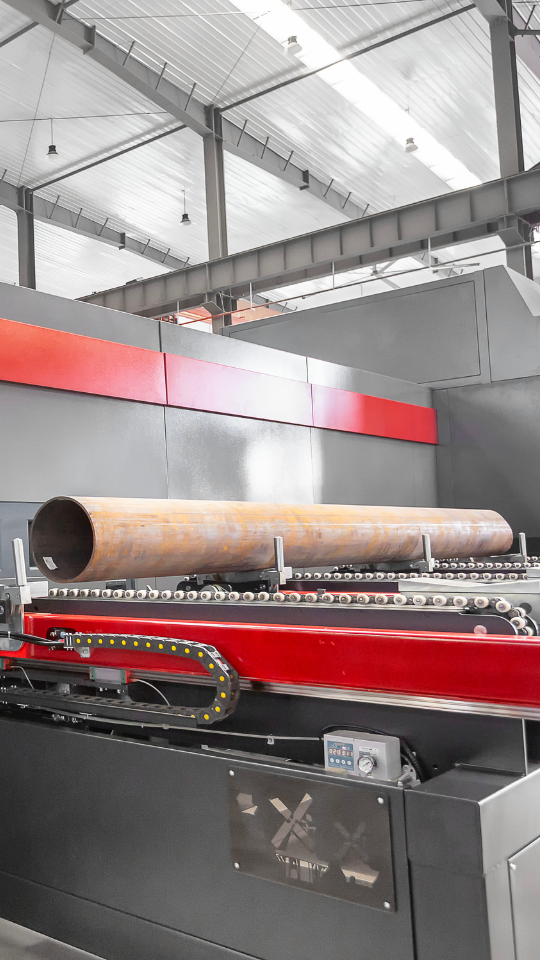

Intuitive by design, the V845 features a 24" touchscreen, live camera views, and job resume functionality for smooth production. Semi-automatic loading, automatic cutting head centering, and smart length-based sorting make every job effortless.

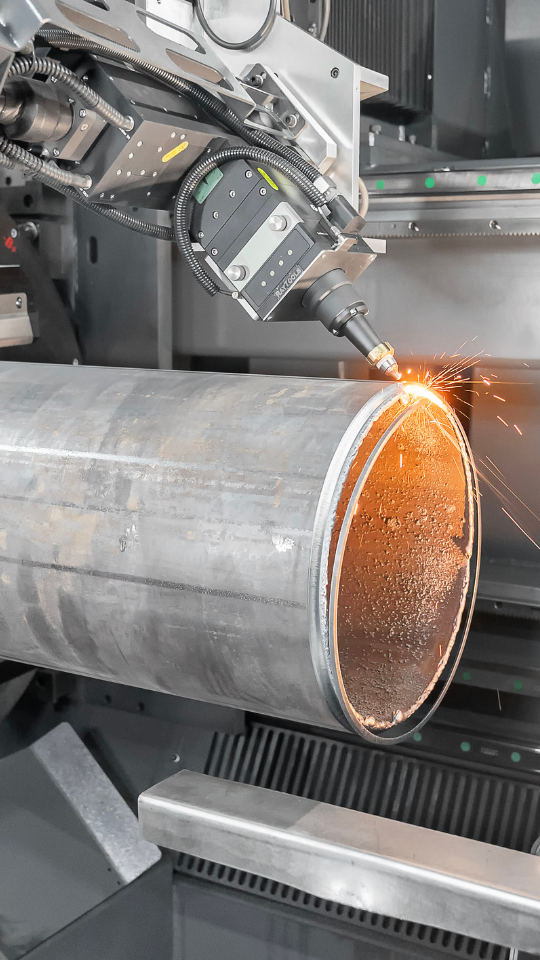

3D BEVEL CUTS
Enjoy full 3D bevel cutting up to 45° for versatile weld preparations. The laser sensor delivers high calibration accuracy. The built-in nozzle compensation mode eliminates the need to recalibrate the focus after changing the nozzle.

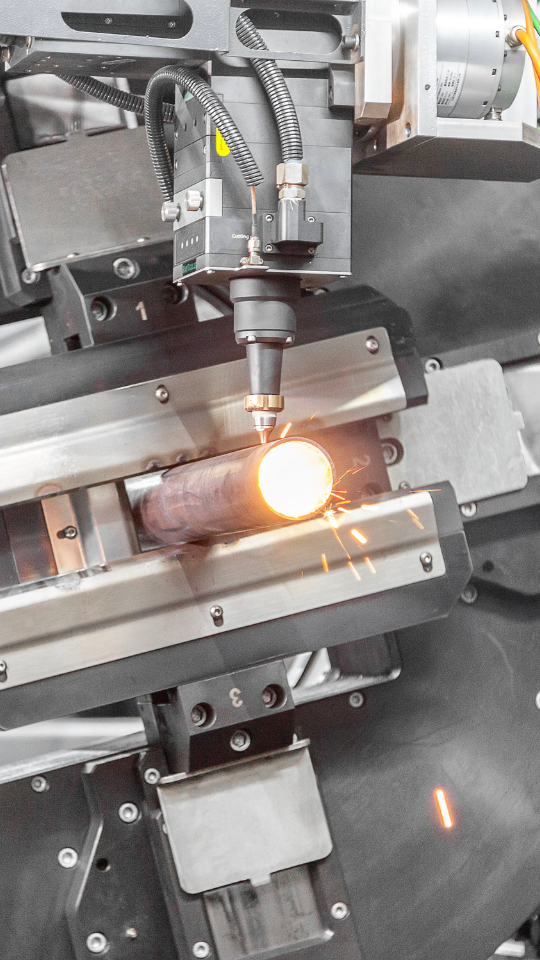

HIGH-QUALITY CUTTING

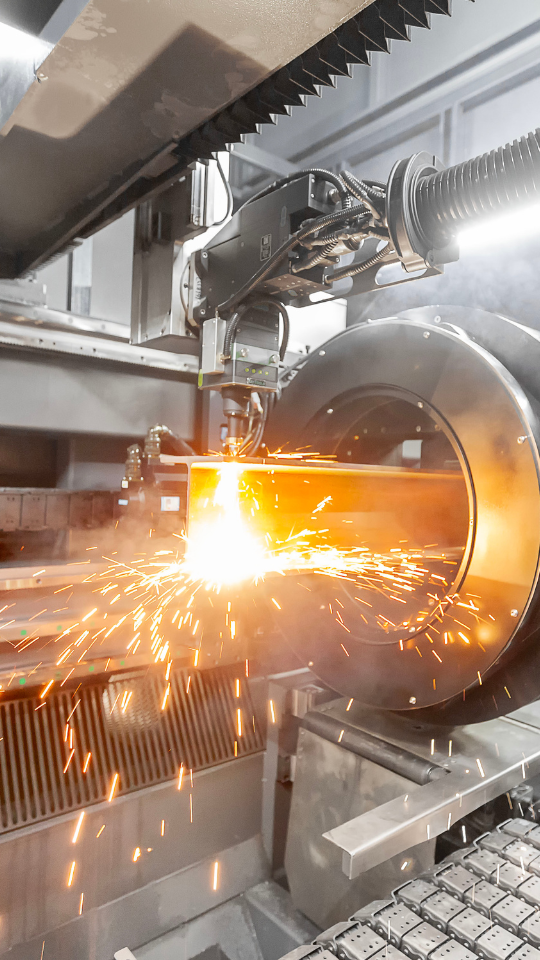

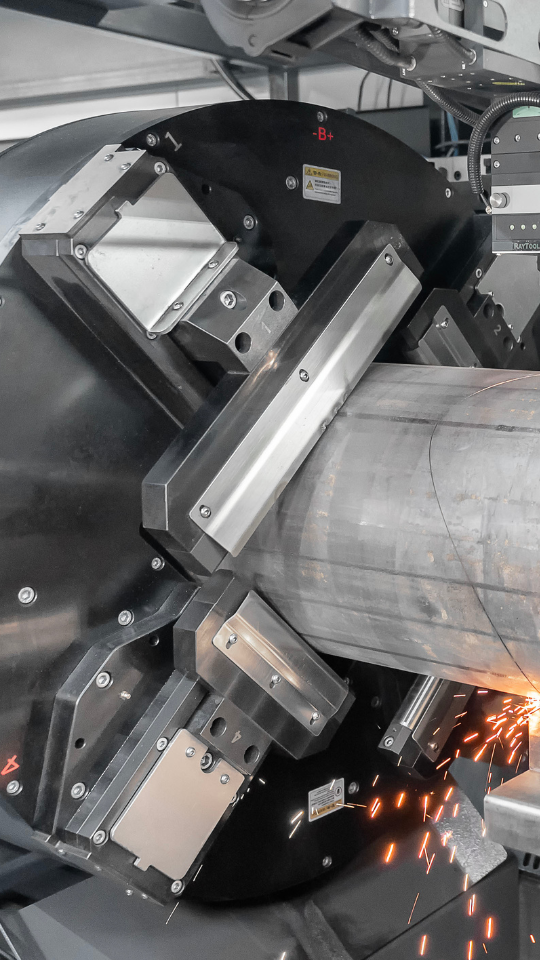

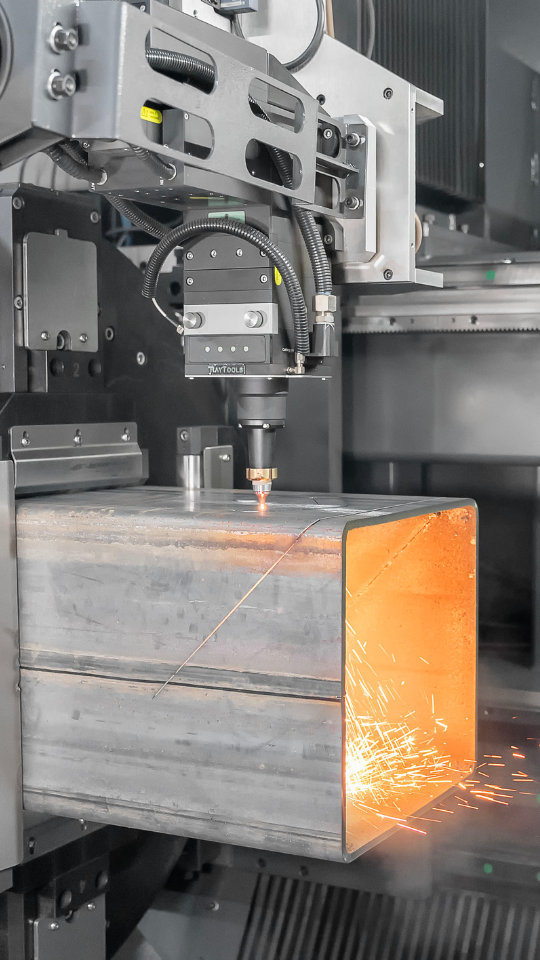

The V845 features automatic height sensing, centering and adjustable clamping force of profiles. The automatic nozzle & bevel axis calibration ensures ultra-precise ±0.1 mm (1/254”) high-quality cutting while minimizing downtime and operator errors.
UPGRADE YOUR MACHINE
Laser power
Start with 6 kW for standard cutting needs and scale up to 12 or even 20 kW for more demanding applications.
Chuck size and configuration
The V845 is available with a chuck range of 350 or 500 mm (14.2 or 19.7”). On the V845-500, a fourth chuck is available. The infeed and outfeed lengths have options of 6, 9 or 12 meters (20, 30 and 40 ft).
Infeed upgrade
Switch from chain transmission to a high-speed feeding arm for tighter material placement and 30% faster loading.
Short product device
The short product device automatically unloads and removes cut-offs and smaller parts. It keeps the work area clear, improves safety, and ensures smooth, continuous production.
INTERESTED?
Get in touch with us
We'd love to hear from you! Whether you have questions, need support, or want to learn more about our products and services, our team is here to help.
FAQ
Yes. The Voortman V845 excels in versatility and can process a wide range of profiles, including H/I profiles up to 350 x 350 mm (13-13/16" x 13-13/16").
Absolutely. The Voortman V845 is equipped with a bevel cutting feature that allows for weld preparations and angled cuts up to 45°, offering greater flexibility in tube and profile processing.
Yes. The Voortman V845 is a fully enclosed fiber laser system and complies with Laser Class 1 safety standards, ensuring maximum protection for operators.
Yes. The Voortman V845 is designed to handle round and square tubes as well as open profiles, making it highly adaptable for various applications.
Yes. The V845 comes with Lantek CAD/CAM software, enabling fast programming, efficient nesting, and precise cutting.
Yes. The included programming software can be upgraded to support STEP and DSTV file imports, enhancing compatibility with various design workflows.
Yes. Thanks to its three-chuck system, the V845 can rotate and reposition profiles, allowing for full-profile cutting, including the backside.
